Bond · Smart Sensing Series

Breaking the game and making it possible to rule the “nine” security for a long time

2020 Konke Smart Security Category Whole House Iteration

The whole system of security is upgraded

Supporting ZigBee 3.0, the Bond series takes the lead in leaping forward, comprehensively iterating on the existing security products of Konker, becoming the flagship of the new generation of smart home security and achieving a new benchmark for smart home security.

Bond Smart Security Series
Bond Smart Security Series
Bond Smart Security Series
Bond Smart Security Series
Bond Smart Security Series

Aesthetic intelligence with different geometric shapes

Novel and smooth geometric lines inject fresh vitality into intelligent security, and the simple and refreshing neutral design is more in line with the aesthetics of current users.

Bond Smart Security Series
Bond Smart Security Series

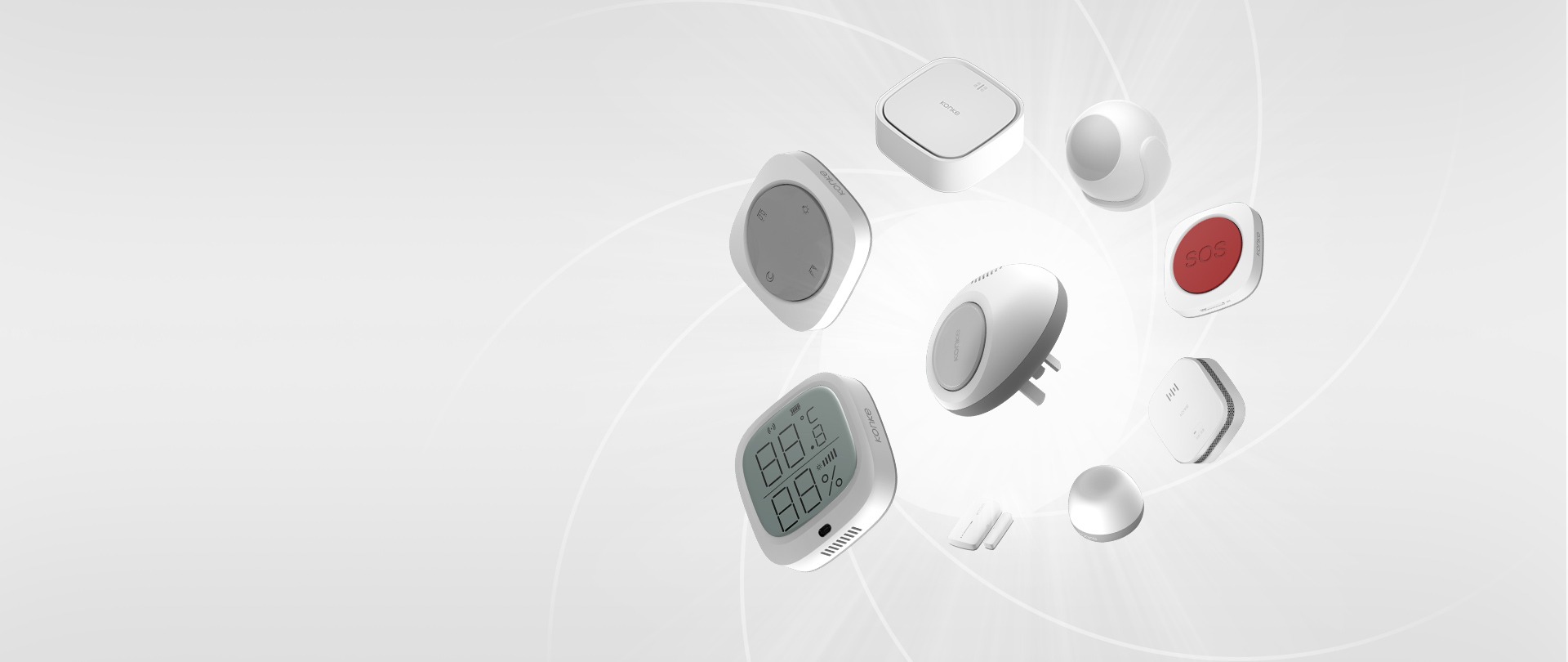

Intelligent 9-piece set of performance strength

The performance exceeds, the battery life is doubled, and the detection distance and the detection range are farther.

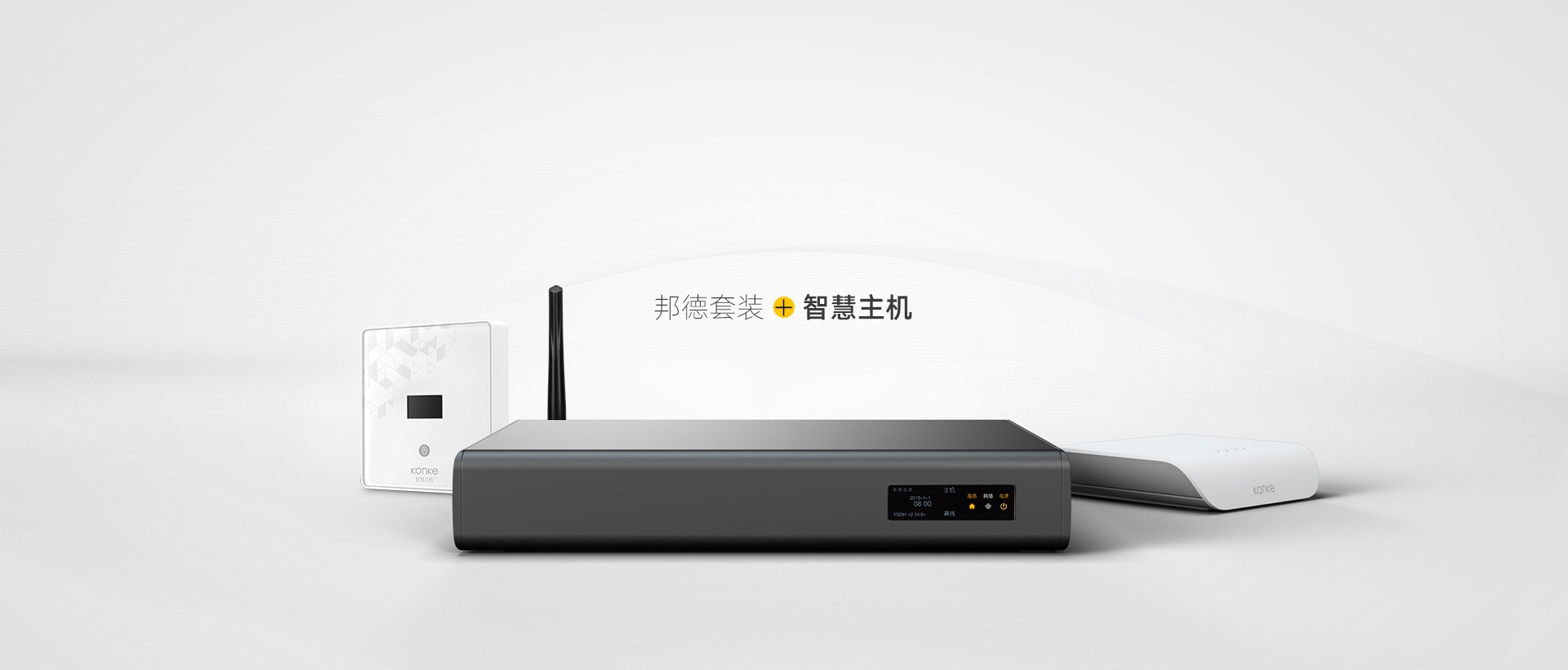

DIYFormation of ecological security CP

Abandoning the fixed thinking of networking with designated hosts, the Bond series fully supports smart hosts, embedded smart hosts, desktop hosts, etc. to form a stable security CP.

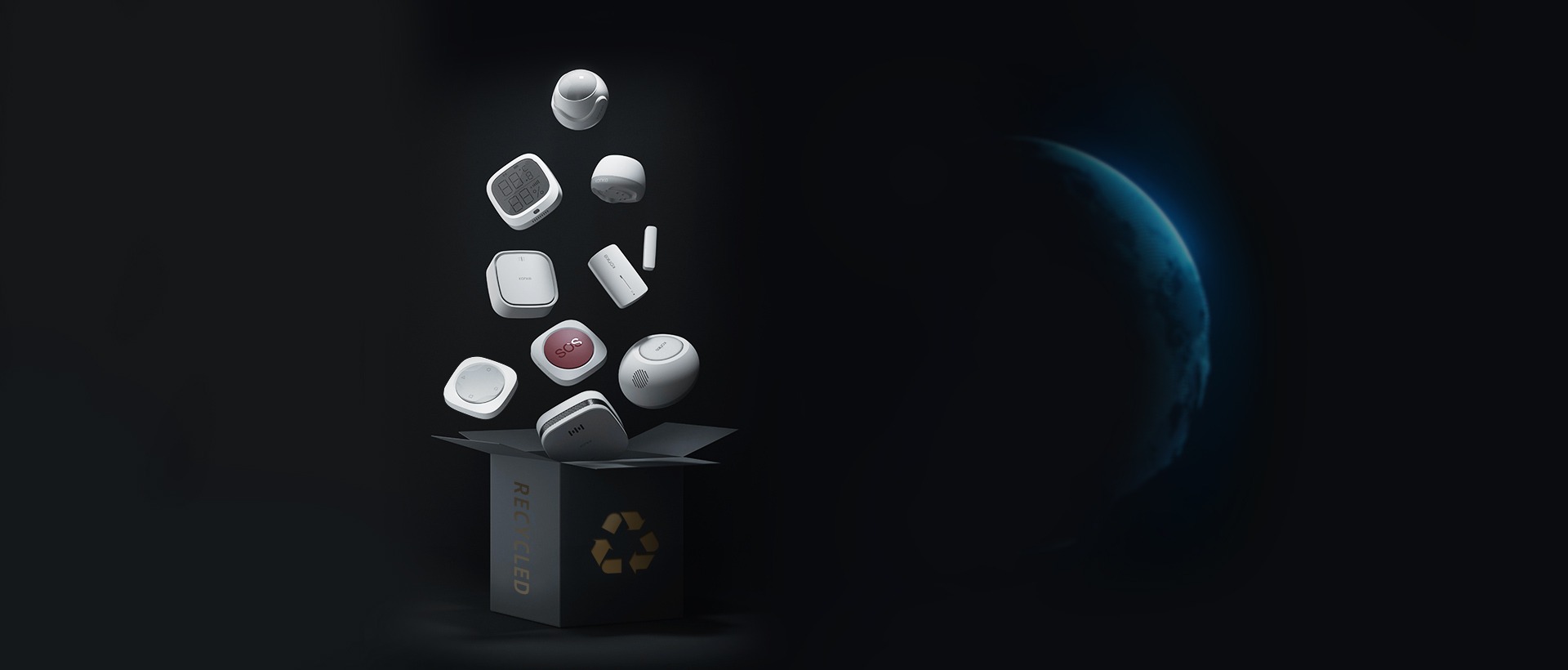

Environmental protection shoulders the burden on the earth

The whole system is made of recyclable materials and spray-free technology. Konke has always practiced the concept of intelligent whole-house low-carbon environmental protection.

Basic parameters  smoke alarm


Working voltage: DC 3V (CR123A)

Working current: <50mA

Unlimited Protocol: ZigBee 3.0 (IEEE 802.15.4)

Transmission frequency: 2.4000~2.4835GHz

Alarm sound: 80dB (3 meters in front)

Measuring range: 50 square meters

Power supply: – 240V ~50/60Hz 1.0A

Output power: 8 × 30W (MAX)

Press key: volume +, volume -, power

Memory card: maximum support 32G

Interface: HDMI, speaker

Kit Pro

Specifications

Dimensions: 90*90*35(mm)

Working Temp: 0℃ to +40℃

Power Supply: DC 5V/ 2A

Power Port: Micro USB

IR Angle: 360°. Reflective environment

IR Distance: Non-reflective open space≧10m

Wifi Standard: IEEE 802.11 b/g/n 2.4GHz

Wifi Max Power: <20dBm

Communication Protocol:IEEE 802.15.4 HA3.0

Zigbee Max Power:19dBm

Number Of Node Connections: 32

Receiving Sensitivity:<-98dBm

Certification: SRRC、FCC、CE、RoHS

Specifications

Dimensions: 30.6*15.7(mm)

Working Temp: 0℃ to +40℃

Battery: CR 2450

Battery Size: 24.5mm*5mm

Communication Protocol: IEEE 802.15.4 Zigbee 3.0

Max Power: 10dBm

Receiving Sensitivity: <-98dBm

Certification: FCC

Specifications

Dimensions: 30.6*15.7(mm)

Working Temp: 0℃ to +40℃

Temperature Detection Accuracy: ±0.5℃

Relative Humidity Detection Accuracy: ±5%

Battery: CR 2450

Battery Parameter: 3V 540mAhBattery Size: 24.5mm*5mm

Communication Protocol: IEEE 802.15.4 Zigbee 3.0

Zigbee Power: 10dBm

Receiving Sensitivity: <-98dBm

Certification: FCC、IC

Specifications

Dimensions: 31*27.5(mm)

Working Temp: 0℃ to +40℃

Detection Range: 4m~6m

Detection Angle: 120°~140°

Battery: CR 2450

Battery Size: 24.5mm*5mm

Communication Protocol: IEEE 802.15.4 Zigbee 3.0

Max Power: 10dBm

Receiving Sensitivity: <-98dBm

Certification: FCC

Specifications

Dimensions: 45*24*11.5(mm)

Working Temp: 0℃ to +40℃

Detection Range: ≤ 20mm

Battery: CR 1632

Battery Size: 16mm*32mm

Communication Protocol: IEEE 802.15.4 Zigbee 3.0

Max Power: 10dBm

Receiving Sensitivity: <-98dBm

Communication Protocol:IEEE 802.15.4 HA3.0

Zigbee Max Power:19dBm

Number Of Node Connections: 32

Receiving Sensitivity:<-98dBm

Certification: FCC
